1kHz to 20MHz Impedance Analyzer

The IX120 delivers benchtop R&D accuracy for measuring inductive or capacitive impedances, additionally is capable of measuring the parameters of coupled coils and high-frequency transformers. With a user installed USB connector and an external 5V USB power bank it can operate as a standalone instrument or connected to a computer. It comes with a companion plotting and data-logging software. The IX120 is intended for engineering development, evaluation and prototyping rather than high-volume automated production or primary measuring standard. Users Are required to independently acquire and solder a USB connector and acquire and attach a suitable LCD display.

Request Information

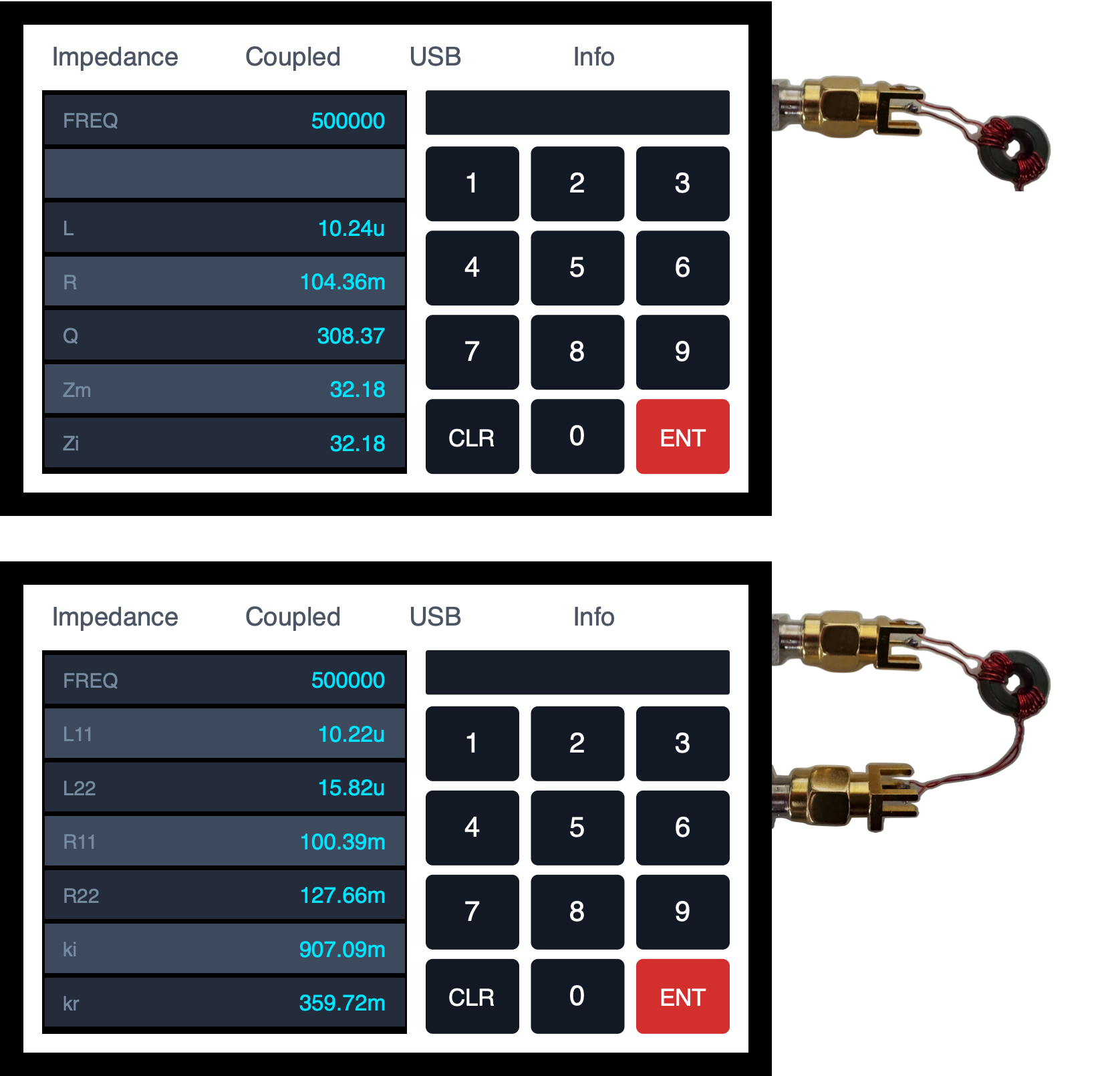

Impresix IX120 Engineering Schematic Render
NOTE: The picture above is a graphic rendering. Actual screen layout, resolution, illumination, contrast, and interface components might differ slightly on the final physical hardware. User supplies and connects compatible LCD display with Touch capability.
Bench Top Level
Accuracy
USB
Connectivity, with User Installed USB Connector
1kHz-20MHz
Sinewave Excitation
Z11, Z12, Z22
Extraction

Designed for Engineering Development and Prototyping

The IX120 delivers benchtop R&D accuracy optimized for engineering development, validation, and prototyping.

Impedance Icon

Impedance & Coupled Coil Measurements

Measure inductive or capacitive complex impedances, and coupled coil/ high frequency Transformer parameters for better estimation of coupling and AC losses.

Disp Icon

Power & Connectivity Modes

  • Standalone Mode: Operates independently using a standard 5V USB power bank.
  • PC Connected Mode: Powers and interfaces directly with a computer via a USB cable.

*Note: The USB connector is a user-installed component and must be soldered to the PCB prior to operation.

Graph Icon

Plotting & Data Logging

Supported by a companion software designed to handle real-time plotting, automated frequency sweep, and quick-export data logging for further postprocessing.
